Resource Analysis

Pumbaa provides a structured and data-driven way to analyze resource utilization in Cromwell-executed workflows. By processing monitoring logs, it enables a per-task evaluation of CPU, memory, and disk usage, allowing you to correlate resource consumption with input size and identify concrete optimization opportunities.

The analysis workflow is composed of two independent steps:

  1. Data collection — process monitoring logs for a specific workflow execution.
  2. Visualization and interpretation — aggregate one or more reports into an interactive dashboard.

Step 1 — Data Collection

Data collection is performed using the pumbaa workflow resource-report command. This step analyzes the monitoring logs of a single workflow execution and produces a normalized TSV report with per-task metrics.

Prerequisites

To generate a resource report, the workflow execution must meet the following requirements:

  • Monitoring enabled The workflow must have been executed with Cromwell options that enable the resource monitoring script. This script periodically records CPU, memory, and disk usage for each task.

  • Accessible task inputs Input files referenced by tasks must be accessible (e.g., GCS or local filesystem). Pumbaa computes total input size per task to support resource usage vs. data volume analysis.

Usage

Run the command with the target Workflow ID:

pumbaa workflow resource-report [flags] <workflow-id>

Flags

  • --concurrency, -c Number of concurrent workers used to fetch monitoring logs (default: 5).

What This Command Does

  1. Metadata retrieval Fetches workflow metadata from the Cromwell server.

  2. Recursive traversal Walks the full workflow graph, including subworkflows, collecting all calls that expose monitoring logs.

  3. Input size calculation Computes the total size of input files per task to enable efficiency and scaling analysis.

  4. Monitoring log parsing Downloads and parses per-task monitoring TSVs to derive:

    • Peak memory usage
    • Peak disk usage
    • Mean CPU utilization

  5. Report generation Writes the aggregated results to <workflow-id>.tsv in the current working directory.

Step 2 — Visualization and Analysis

Once one or more TSV reports have been generated, the pumbaa analyze resources command aggregates them into an interactive HTML dashboard.

Usage

Point the command to a directory containing one or more TSV files:

pumbaa analyze resources [flags] <directory>

Flags

Flag Description
--output, -o Output path for the generated HTML report (default: resource_report.html)
--no-llm Disable LLM-based optimization recommendations. Useful for offline usage or faster generation.
--llm-batch-size Number of tasks analyzed per LLM request (default: 25).
--llm-debug Path to save LLM prompts and responses for debugging purposes.

Dashboard Features

Interactive Overview

The generated output is a self-contained HTML file, viewable in any modern browser. It provides both a high-level summary of workflow efficiency and detailed per-task metrics.

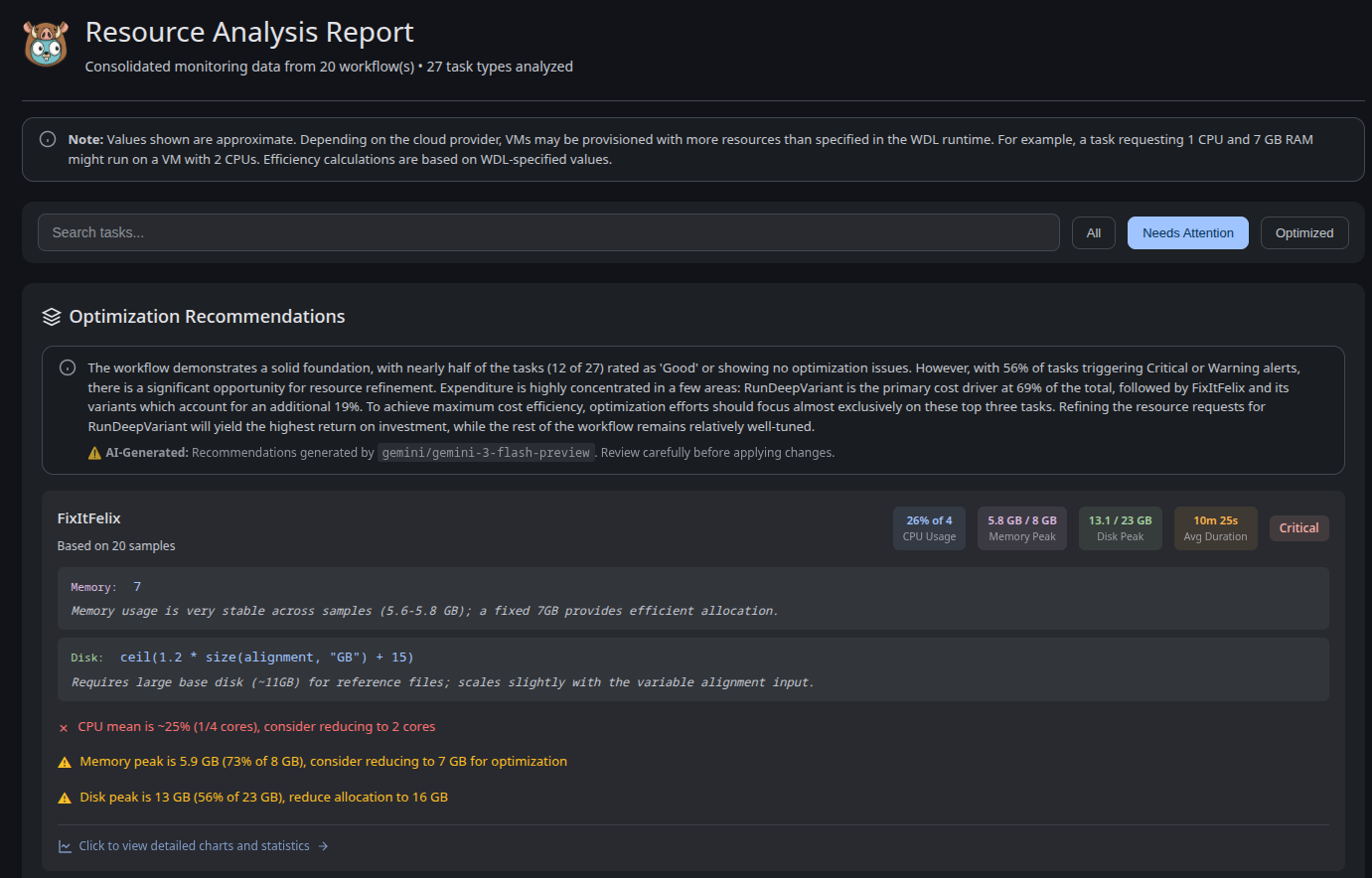

Resource Analysis Report

Executive Summary

At the top of the report, an executive summary provides a quick overview of workflow health:

  • Total number of tasks analyzed
  • Breakdown by optimization status (Good, Warning, Critical)
  • Top cost drivers and their percentage of total resource cost
  • Key recommendations for where to focus optimization efforts

This summary is generated by the LLM and gives you an at-a-glance understanding of where to prioritize your time.

Optimization Recommendations (LLM)

When enabled, Pumbaa uses a Large Language Model (LLM) to analyze task-level metrics and generate actionable optimization recommendations. For each task, the LLM evaluates:

  • CPU utilization patterns
  • Memory peak vs. allocated memory
  • Disk usage efficiency
  • Scaling behavior relative to input size

Recommendations are color-coded by severity:

  • 🟢 Good — Resource allocation is appropriate
  • 🟡 Warning — Potential for optimization
  • 🔴 Critical — Significant over-provisioning detected

Important

LLM-generated recommendations are suggestions based on observed patterns and may not be accurate in all cases. Always test changes in a non-production environment before applying them to production workflows. Resource requirements can vary based on factors not captured in the metrics, such as algorithm complexity or data characteristics.

Note

When running with --no-llm, the report includes only descriptive statistics and visualizations, without automated optimization guidance.

Tested Models

The LLM recommendations have been tested with gemini-3-flash-preview and produce good results. Smaller local models (e.g., ollama/gpt-oss:20b) may not generate useful recommendations due to their limited reasoning capabilities.

Dynamic Resource Formulas

A unique feature of Pumbaa's LLM analysis is the generation of dynamic resource formulas. Instead of recommending static values, the LLM derives formulas based on input file sizes:

# Example disk formula
disk: ceil(1.5 * size(alignment, "GB") + 10)

# Example memory formula
memory: ceil(0.8 * size(input_bam, "GB") + 4)

These formulas:

  • Scale automatically with varying input sizes
  • Include safety margins to prevent task failures
  • Are accompanied by reasoning explaining why the formula was chosen

The formula reasoning appears directly below each formula in the report, helping you understand the LLM's analysis methodology (e.g., "Memory usage shows linear scaling with input size, slope ~0.8 GB per GB of input").

Efficiency Scatter Plots

Selecting an individual task opens a detailed modal view with efficiency plots such as Memory Usage vs. Input Size. These plots are particularly useful for:

  • Identifying non-linear scaling behavior
  • Detecting tasks with inconsistent resource profiles
  • Validating runtime assumptions across varying input sizes

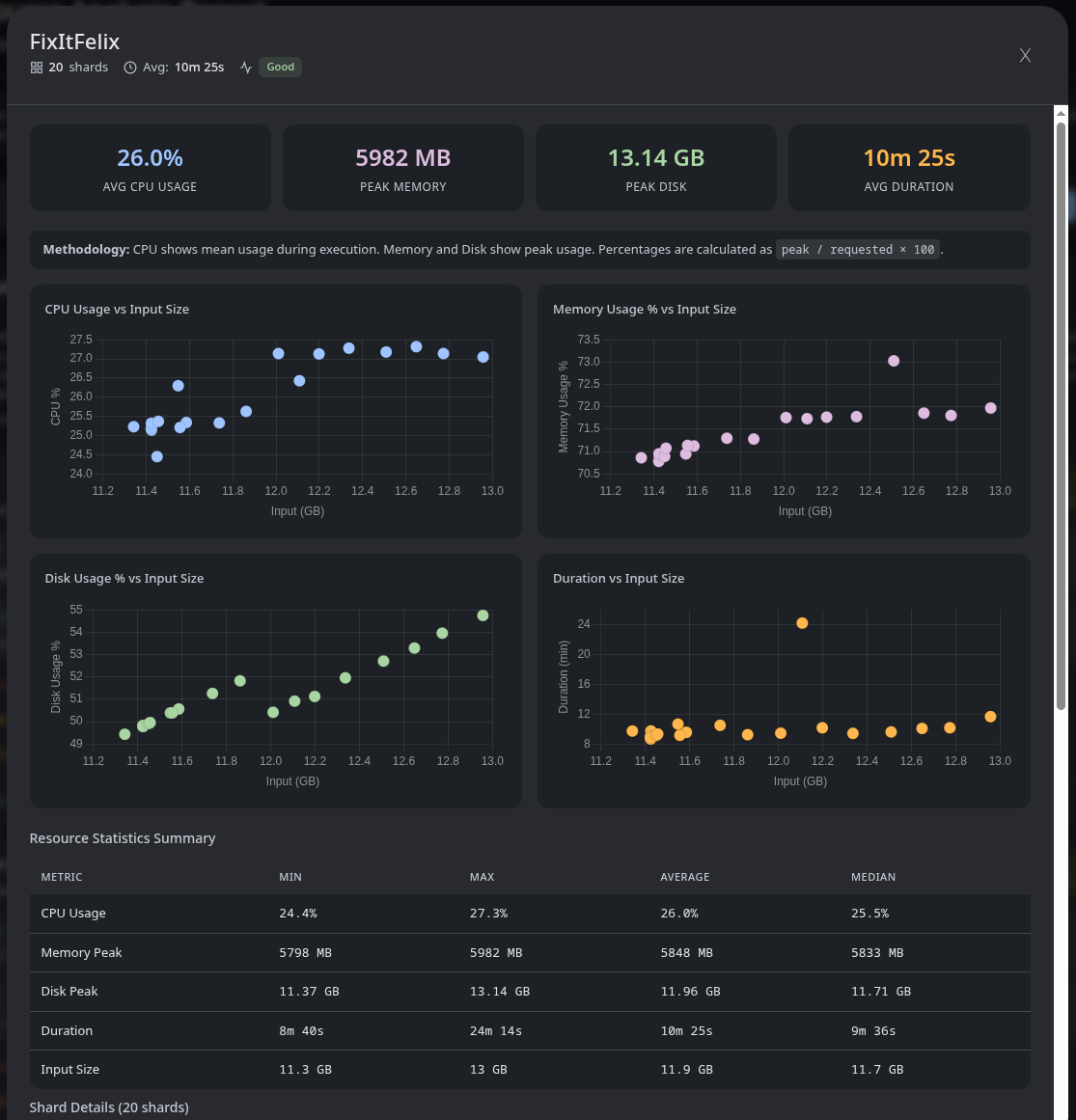

Resource Analysis Modal

Troubleshooting

Debugging LLM Interactions

If recommendations seem unexpected, you can save and inspect the LLM interactions:

pumbaa analyze resources --llm-debug=llm_debug.txt ./reports/

The debug file contains:

  • System instructions sent to the LLM
  • Formatted prompts with task data
  • Raw LLM responses

This is useful for understanding how the LLM interprets your data and for reporting issues.
